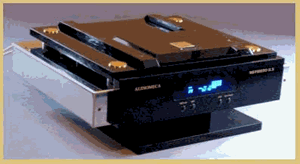

High precision CD Player .
Top loading (sliding system)
Dimensions: 430mmW X 360mmD X 155mmH
Weight: 12 KG
Construction: Massive and made of polished black metacrylate, glossy
stainless steel and gold
Remote control with all progamming facilities
True 24 x 192 DAC section using last generation of Anagram ATFMKII
asynchronous upsampler module
Resolution up to 24 bits (even 32)
No PLL after the input chip.
Input and output clock totally independent.
A breakthrough in the digital processing techniques
Virtually zero jitter
40 bits floating point DSP for sampling rate conversion,
interpolation and signal enhancement (Analog devices SHARC ADSP-
21065L)
Automatic input format sensing
Upgradable open structure to any new signal format and to improved
new algorithm thanks to modular construction, programmable gate
array and DSP chips
AudiophiIe Audio stages with perfect phase linearity.
Superb and neutral sound quality
Super deluxe external power supply with 2 power supplies and 2 power
cables for maximum seperation of digital, audio and input sections
Special attention paid to PCB layout
Selected components
Measured performances to match (on Audio Precision)
Frequency response: set for optimal transcient response
THD+N (1Khz, 0dBFS) better than 140 dBr
Channel separation: 125dB
Low power consumption: 35W at 230V
Alimentation: 100/230 Volts - 50/60Hz
Unbalanced audio outputs: 2 x RCA coax connectors (0.1 ohm, 2Vrms)
Balanced Audio outputs: 2 x XLR connectors
(0.1 ohm, 2Vrms)
Digital outputs:
1 RCA coax standard (S/PDIF, 75ohms, 0.5V)
1 RCA coax direct (S/PDIF, 75ohms, 0.5V)
1 AES/EBU XLR (1 lOohms, 5V)
No pulse transformer
All golden RCA coax Teflon insulation
---------------------------------------------------------------------
----------- |
|
|
|
